Cylinder support arch

Position and force control

Mechanical engineering
Realizations
Cabling
Machines

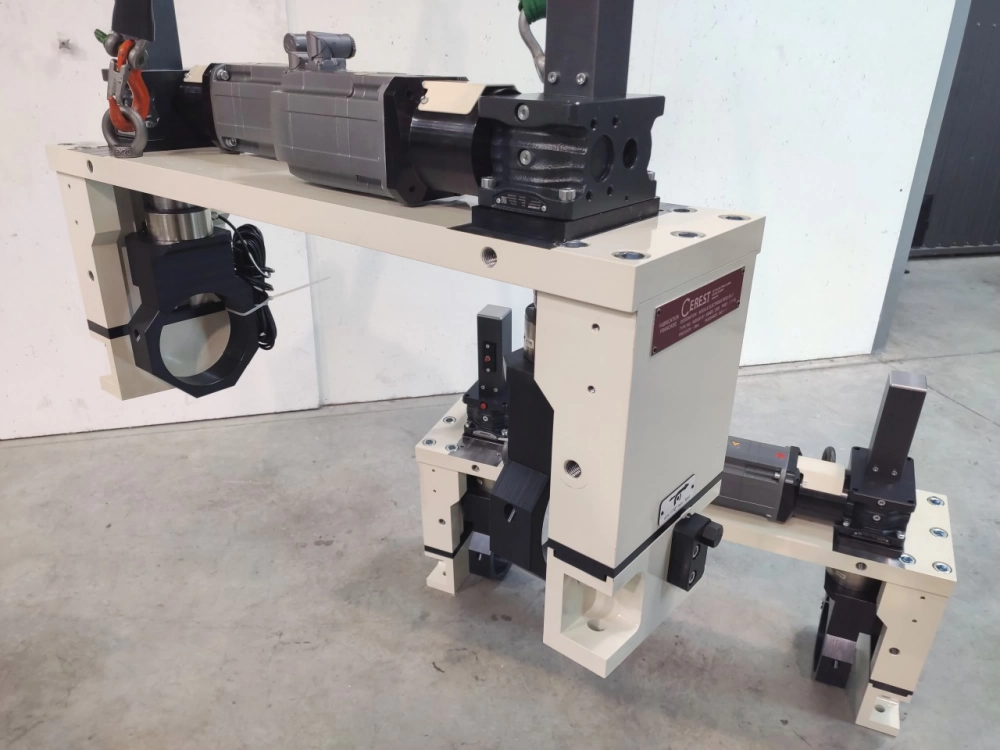

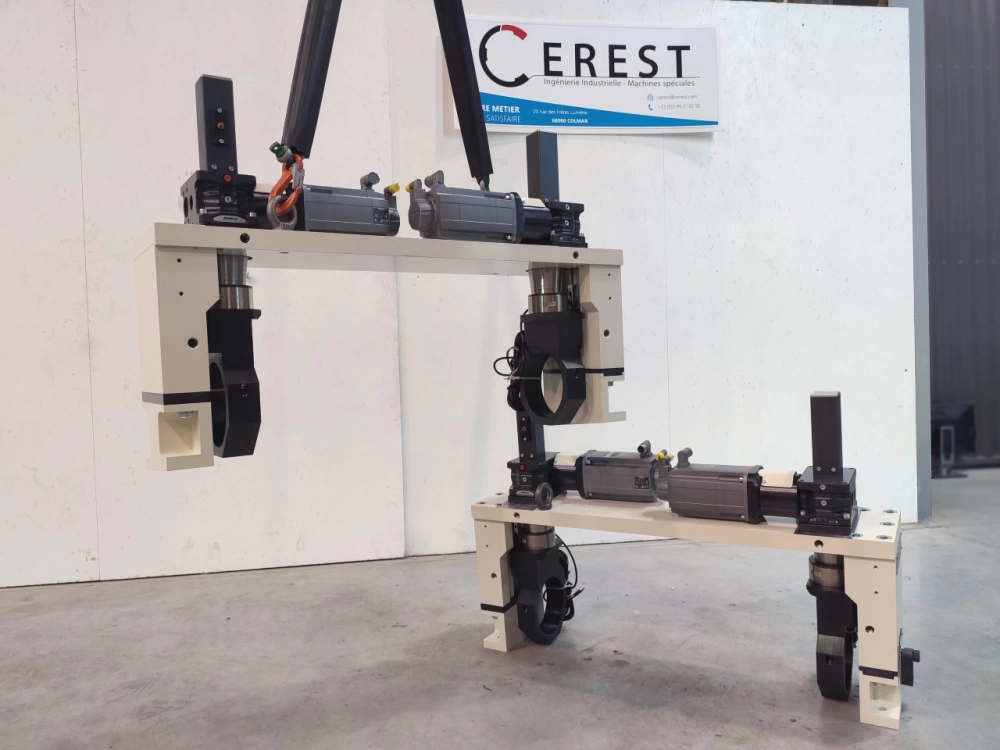

The cylinder support arch allows the mounting of an idle cylinder (not shown in the illustrations) on a paper web production line.

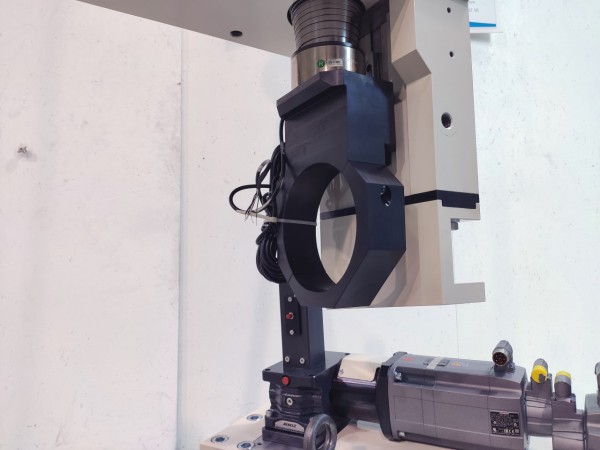

Thanks to the 2 independent brushless linear axes located on each side, the cylinder is positioned in an extremely precise way.

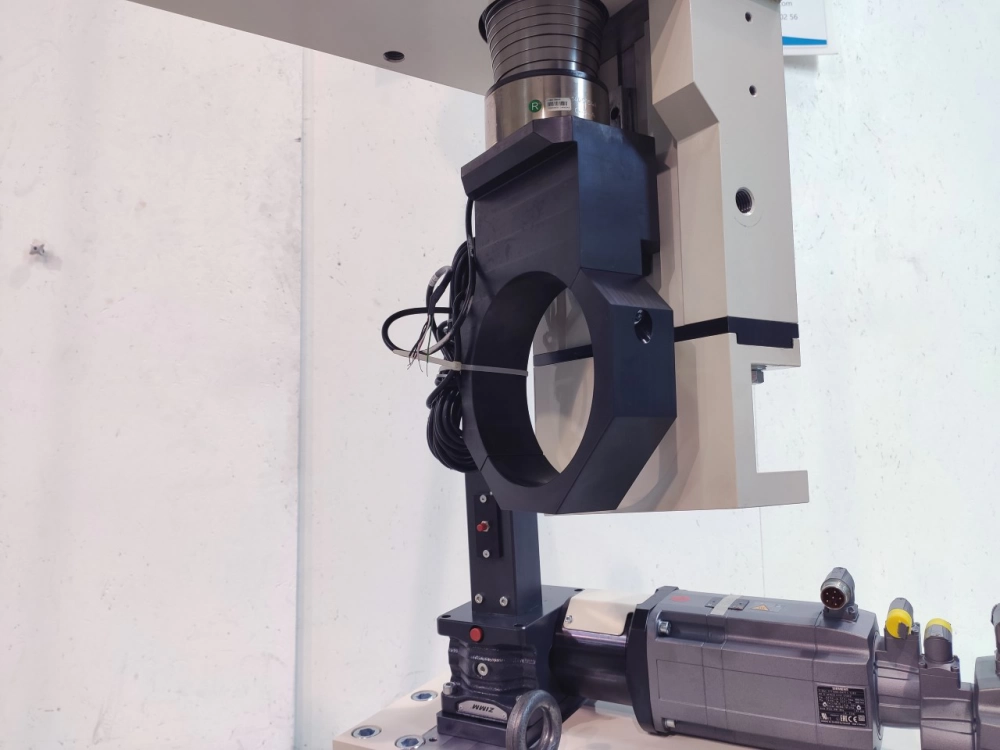

With the addition of 2 load cells, the force applied on each side is also controlled with an accuracy of +/- 10N.

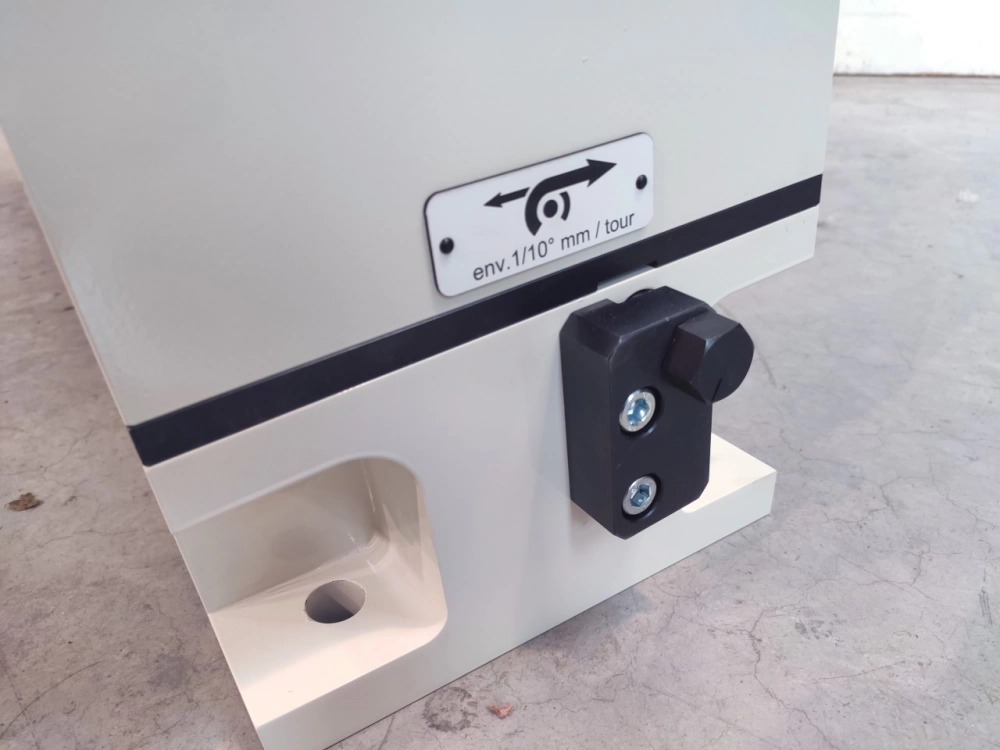

In order to obtain a perfect parallelism between the cylinder and the rest of the customer's installation, the feet of the arch are equipped with a micrometric adjustment.

SPECIFICATIONS :

  • Dimensions: 1150 x 250 x 650mm
  • Push force: 2x 35kN
  • Accuracy of effort measurement: +/-10N
  • Linear axis stroke: 105mm
Download PDF version Reference : 3430-50
< >

Project added the May 27, 2020
